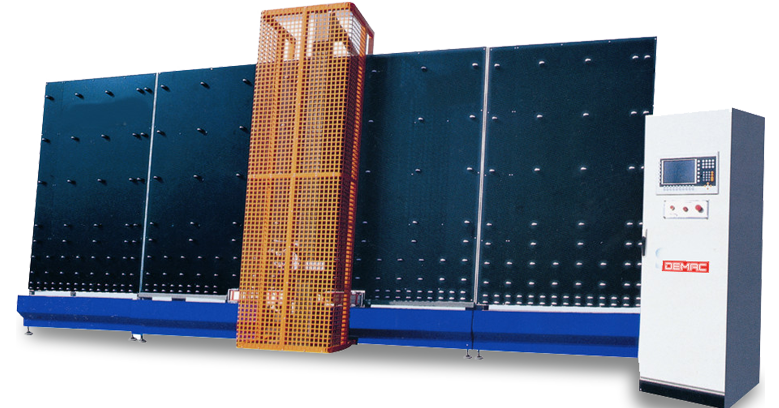

Low-E glass film removing machine

Low-E glass film removing machine           BLCM01

Features:

1.CNC control system, the parameter setting is fast and convenient.
2.Touch screen operation interface, automatically monitor machine running state.
3.4 axis servo motors movement ensures precise position, free change of glass running direction enables easy connection of any production line.
4.Automatically test glass size and no need changing wheel for uneven width film removing.
5.Horizontal wheel working method can decrease the wheel wearing.
6.Linear slide unit enable to get good film removing result.
7.Itelligent memory for the same glass size, high efficiency.
8.Automatically adjust the air pressure of wheel moving achieve good film removing result.
9.Automaticaly distinguish the coating side of coated glass and Low-E glass.
10.Special shape available.

Technical parameter:

1.Power:17Kw 3p 380V / 1p +N220V 50Hz
2.Glass size: Max.2450x3000mm, Min.300x600mm
3.Wheel loss:5000-6000m/pc (IEA) (Film removing width) 15mm
4.Wheel rotary speed:0-2700rpm
5.Glass conveyor height:450±50mm
6.Glass thickness:3-19mm
7.Film removing width:10-150mm
8.Removing speed:0-30m/min
9.Accuracy:±0.3mm
10.Air pressure: 0.6-0.8Mpa
11.Overall dimension: 8200x1800x3500mm
