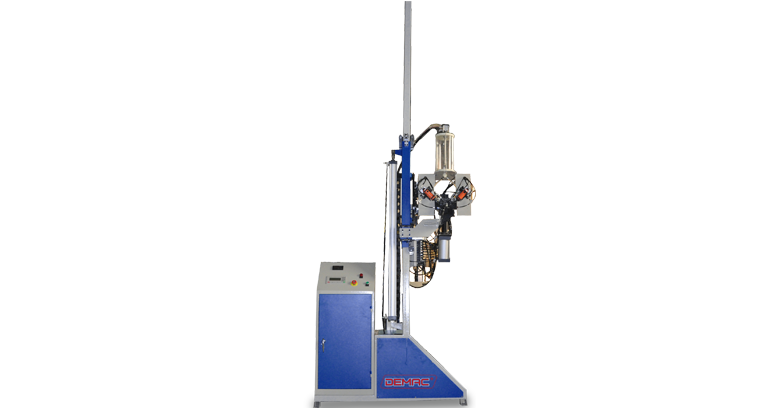

Automatic Desiccant Filling Machine

Automatic Desiccant Filling Machine         FZJ01

Features:

1.Drilling hole on backside of aluminum spacer, automatic desiccant filing.
2.PLC system to control the operation.
3.This machine is suitable to fill the spacer shaped by automatic spacer bending machine and the normal straight pin spacer.
4.The filling can be adjustable according to the size of spacer.
5.It owns the unique and advanced feeing device.

Technical parameter:

Work pressure: 0.5-0.8Mpa
Power: 220V
Filling speed: 8-12s/pc (1mx1m 9a)
Min. Aluminum spacer: 6.5mmx5.5mm
Max. Aluminum spacer: 6.5mmx23.5mm
Dimension: 1000x820x2900mm
