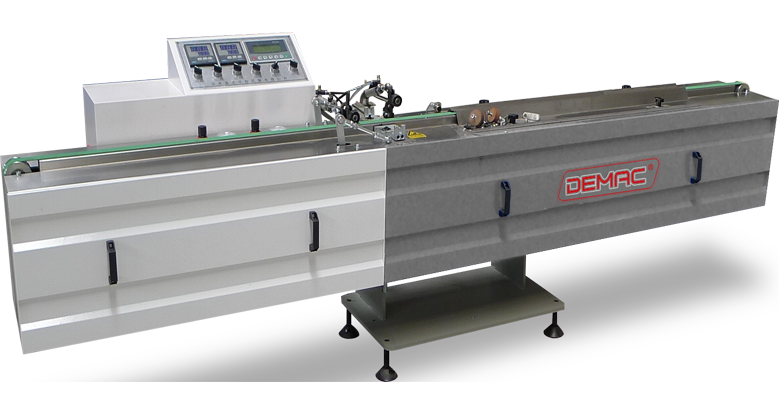

Automatic Butyl Extruder

Automatic Butyl Extruder       JT03

Features:

1.Advanced gas-liquid pressure boost system make sure the stable pressure and energy saving.
2.PLC control.
3.Speed frequency control, speed adjustable (optional).
4.Spray nozzle space manual-adjusting when working.
5.Preheat available.
6. Non butyl automatic alarm system.

Technical parameter:

1.Voltage: 380V 50Hz
2.Power: 4Kw
3.Conveying speed: 21m/min
4.Extruding temperature: 110-160℃
5.Air pressure: 0.5-0.8Mpa
6.Extruding pressure: 10-15Mpa
7.Adjustable range of extruding nozzle: 6-20mm
8.Dimension: 3000x650x1000mm
