Two-component Extruder

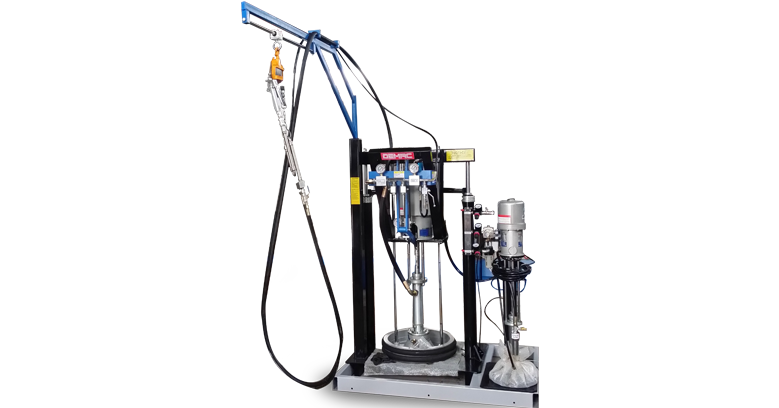

Two-component Extruder      ST02A

Features:

1.Mixer adopts stainless steel flow type to ensure high extruder, easy clean less waste and without sealant leak.
2.B pump adopts two plate seals to reduce sealant leak.
3.B system adopts two filter systems before high pressure output to keep clean.
4.Can flush the gun without power.

Technical parameter:

1.Voltage:380V
2.Air pressure: 0.5-0.8Mpa
3.Air consumption:1.0m3/min
4.Extruding volume: 4-10L/min
5.A pump pressure plate size: ¢570mm, 50gallon
6.B pump pressure plate size: ¢280mm, 5gallon
7.Dimension:1100x950x1630mm
