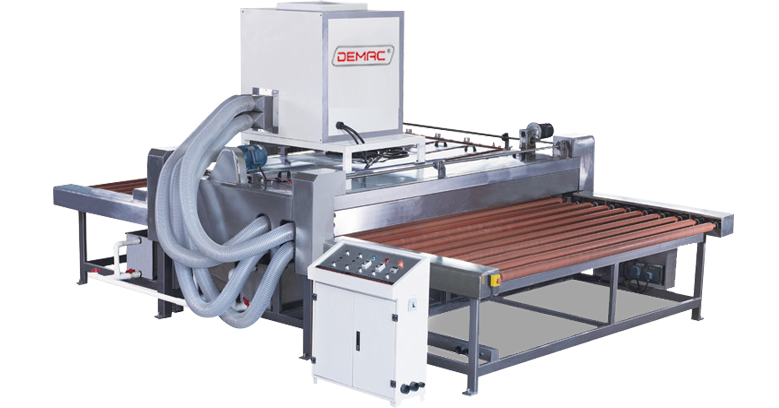

Horizontal Glass Washing Machine

Horizontal Glass Washing Machine               BXW2500

Features:

1.High-press vapor washing, individual circulating water.
2.High-quality stainless steel cover, transmission rollers adopts full rubber rollers. Main driving adopts stepless frequency speed control.
3.3 pairs of high-quality nylon soft brushes, 3 individual water circuits, water heating, wash different glass adopts different brushes (Optional).
4.Washing and drying adopts gear driving.
5.Motor lifting (400mm), easy brushes roller replacement structure.
6.Washing height digital display, 2 pairs of high pressure air knife, stable gear wheel conveyance.
7.High-speed washing, water wringing rollers installed.
8.Low noise and close air drying room.

Technical parameter:

1.Total power: 19.5Kw
2.Air source pressure: 0.5-0.8Mpa
3.Max. glass size: 2500x3500mm
4.Min. glass size: 300x200mm
5.Glass thickness: 3-20mm
6.Washing speed: 1-8m/min
7.Work height: 850±20mm
8.Recycle water: 0.5T/day
9.Dimension:5800x3300x2200mm
