Double Head Cutting Saw

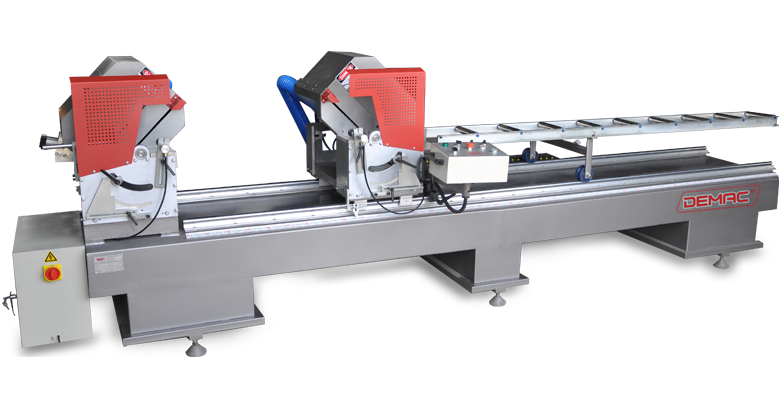

Double Head Cutting Saw           DS450

Specification:

Main function description
This machine is designed for cutting aluminum and PVC profile at the angles of 45 degree and 90 degree;. Its carbide cutters are directly fixed on motor shafts and can swing freely to meet processing demand, which give the machine high cutting speed and accuracy. Each saw head can operate not only independently but also cooperate with each other to accomplish profile processing.

Working condition and environment
Working condition: Power supply should be three-phase and four-wire system and air source pressure should be 0.5~0.8MPa.
Working environment: The machine is to be fixed on hard cement floor in workshop where the air is dry and free of any corrosive.

Specifications and technical data

1.Power supply: Made to order
2.Cutting motor power:  1.5kWx2
3.Cutting motor rotational speed: 2800 r/min
4.Operation air pressure: 0.5~0.8MPa
5.Air consumption: 200L/min
6.Max.Cutting length: 3700mm
7.Min.Cutting length: 580mm(double-head)
8.Cutting width: 120mm
9.Cutting height: 150mm
10.Cutting angle:   45 degree and 90 degree;
11.Cutter feeding speed: 0~3 m/min (Stepless speed regulating)
12.Saw blade specification: 450*3.2*40
13.Contour dimension: 4500*1300*1450mm
