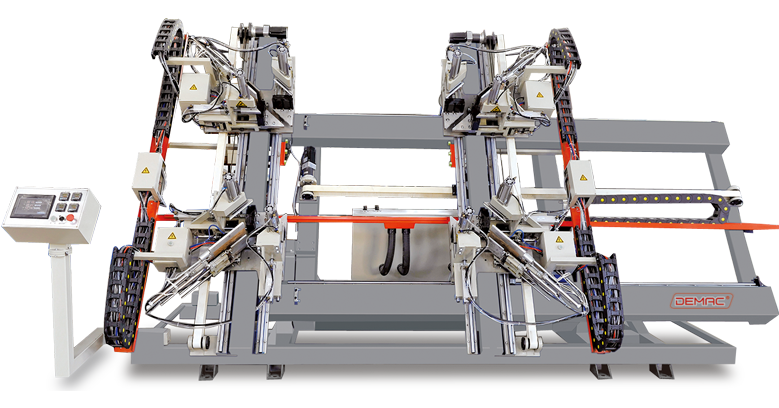

CNC Four Point Welding Machine

CNC Four Point Welding Machine          VRW-CNC-3000A

Features

1. Imported computer control system with high precise welding, easy operation and high stability.
2. Imported linear bearing system kept the running stable.
3. Special “Know — How” technique keep the high corner strength.
4. Measurement error compensation is available to increase welding precision.
5. Parallel Welding Type. To realize parallel welding and strengthen corner welding, two profile-clamps synchronously and symmetrically feeding
6.Used for automatically realizing the welding of frame.
7. With Mitsubishi CNC system

Parameter

Input Voltage:380V/220V 3N～50Hz
Input Power:10(kw)
Air Pressure:0.4～0.6(MPa)
Air Consumption:80(L/min)
Welding Height:25～160(mm)
Welding Width(Max):130(mm)
Welding Range:400×400～1800×3000(mm)
Overall Dimension:5000×2000×2860（mm）
