Water Slot Milling Machine

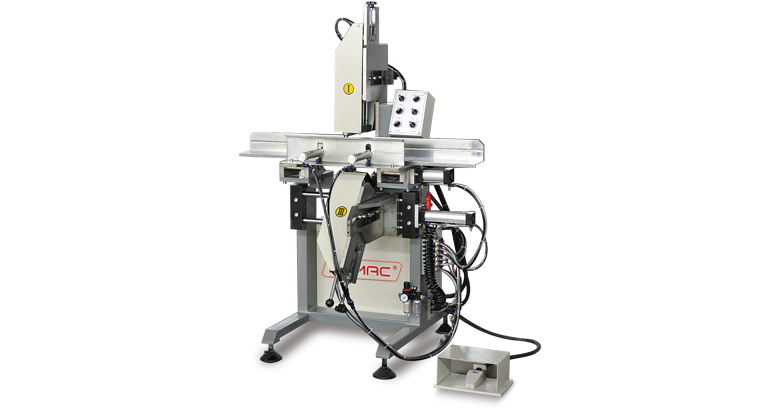

Water Slot Milling Machine         WSMA-60

Function

1) Milling all kinds of water slots and air pressure balance groove
2) Full design with high rigidity, processing beautiful water slot, high appearance quality
3) Automatic cutter changer on the under head, one time clamp, two end water slots processing
4) High efficiency, suitable for mass production
5) Special feeding system, need no special maintenance, high milling quality
6) Convenient adjustment for the cutter location to meet different kinds of profiles
7) Water slot milling length adjustable within 100mm, wide adaptability
8) Adopt linear bearing motion to ensure the processing precision

Parameter

Input Voltage:220V/50Hz
Input Power:1.14(kW)
Air Pressure:0.5~0.8(MPa)
Air Consumption:30(L/min)
Main-shaft Revolution:25000(r/min)
Cutter Diameter:φ5   φ8(mm)
Slot Length:0~100(mm)
Overall Dimension:1200×1200×1800(mm)
